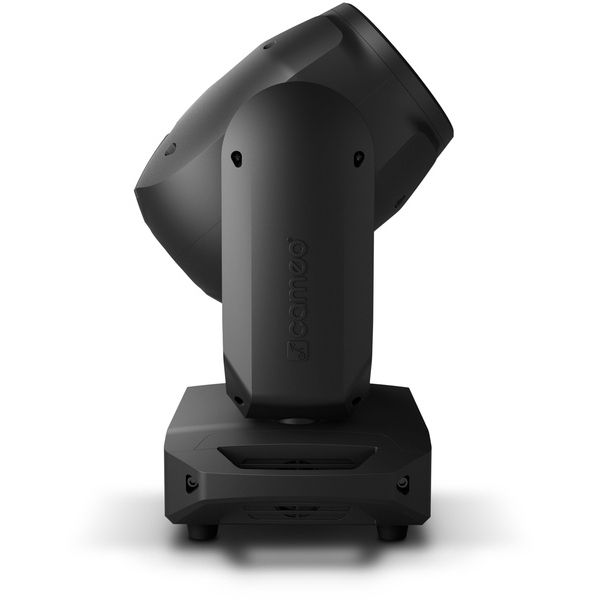

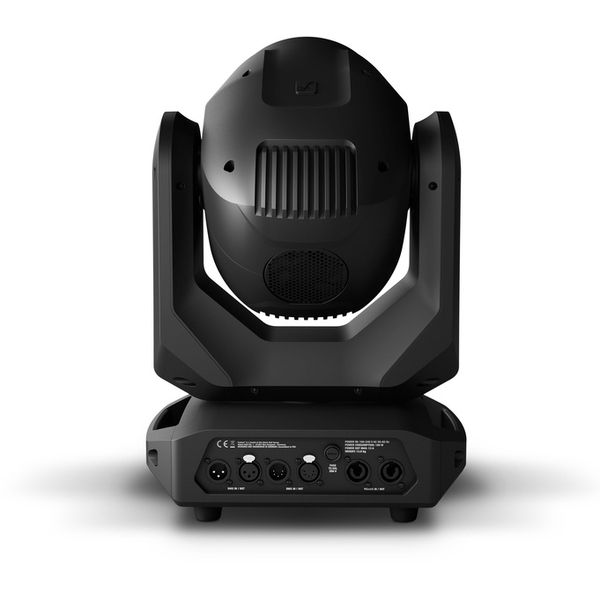

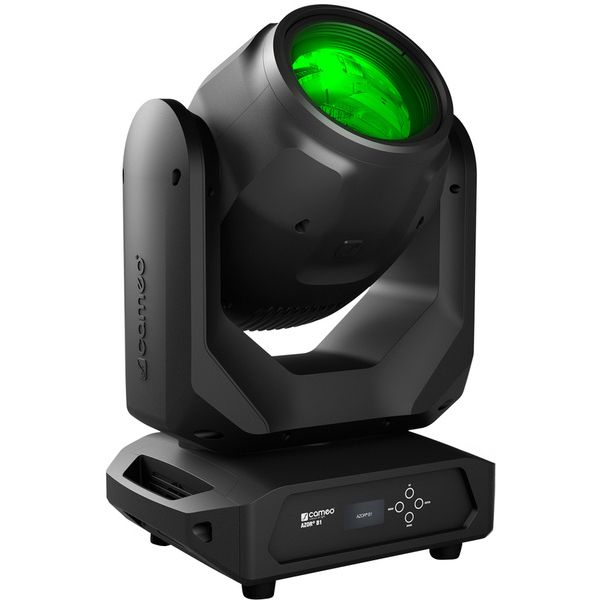

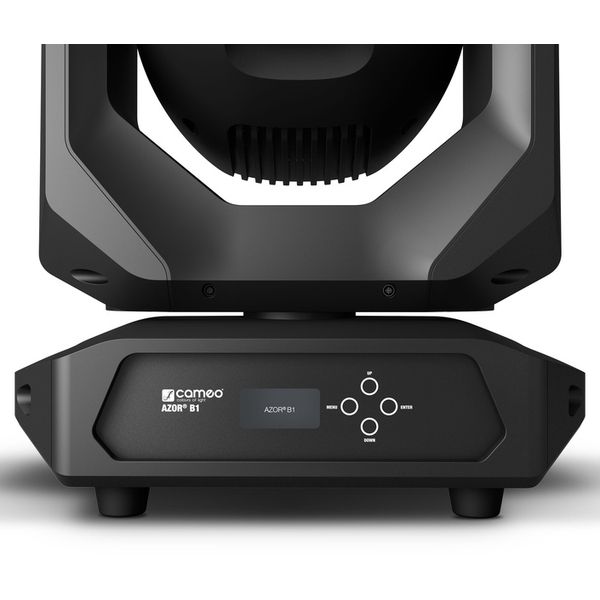

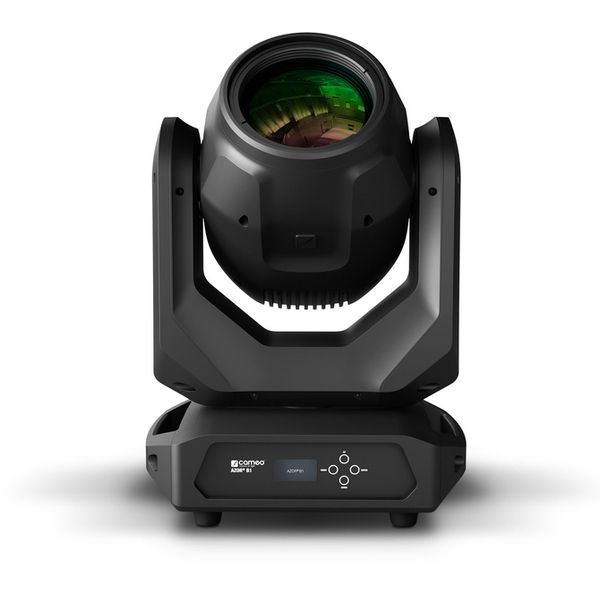

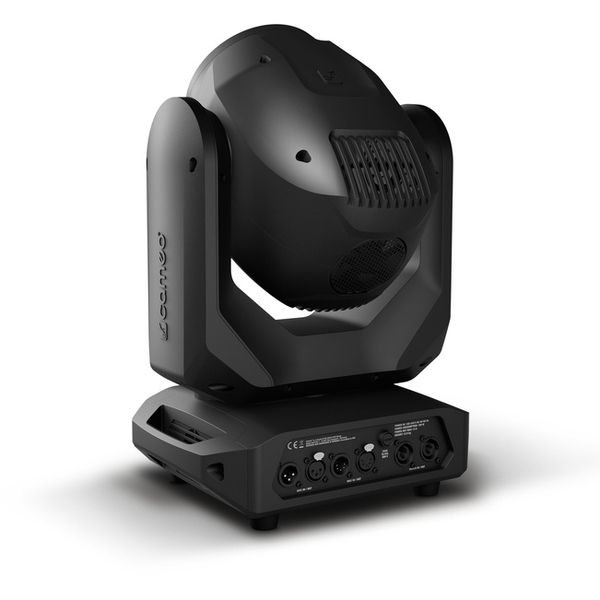

Cameo Azor B1

Compact Beam Moving Head

• With an extremely narrow beam angle and motorised focus
• High-quality glass optics with a 2° beam angle for intense, precise beams of light
• 16-bit three-phase motors with automatic position correction for fast and precise movements
• Colour wheel with 14 colours plus white and split colours
• 17 static gobos + open
• Rotatable and indexable circular 8-fold prism and linear 6-fold prism
• Four programmable macros for standalone and master-slave operation

Technical specifications:

• LED type: 100 W cool white LED
• Luminous flux: 1,800 lm
• Illuminance: 180,000 lx @ 3 m
• Beam angle: 2°
• Colour temperature: 9,400 K
• LED PWM frequency: 800 Hz, 1,200 Hz, 2,000 Hz, 3,600 Hz
• Movement: Pan 540° / Tilt 270°
• Motorised focus
• Effects: 17 static gobos / 14 colours plus white and split colours / rotatable and indexable 8-way circular prism / rotatable and indexable 6-way linear prism / strobe up to 3,600 Hz / 4 programmable macros
• Protocol: DMX512, RDM

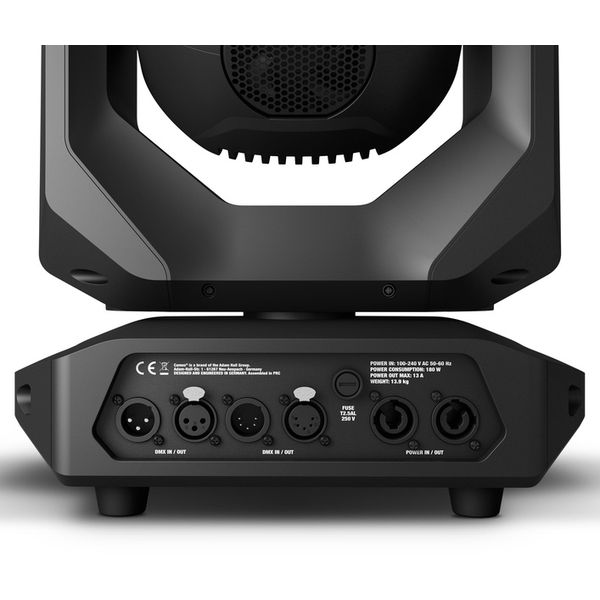

• DMX connection: 3-pin and 5-pin XLR in/out
• Power supply: 100 – 240 V AC, 50 / 60 Hz
• Power consumption: 180 W
• Power input and output: Power Twist TR1
• Protection rating: IP20
• Housing material: ABS, metal
• Temperature-controlled fan cooling
• Housing colour: Black
• Dimensions (W x H x D): 30.6 x 43.7 x 22mm
• Weight: 13.9 kg
• Includes 2 Omega mounting brackets and 1 power cable
