Diamond Memory Lane STM32 Delay

Effect Pedal for Electric Guitar and Electric Bass

Delay
Combines the rich warmth of vintage analogue delay with the precision and controllability of modern digital technology
Four delay modes and tap tempo function
Switchable True/Trails bypass

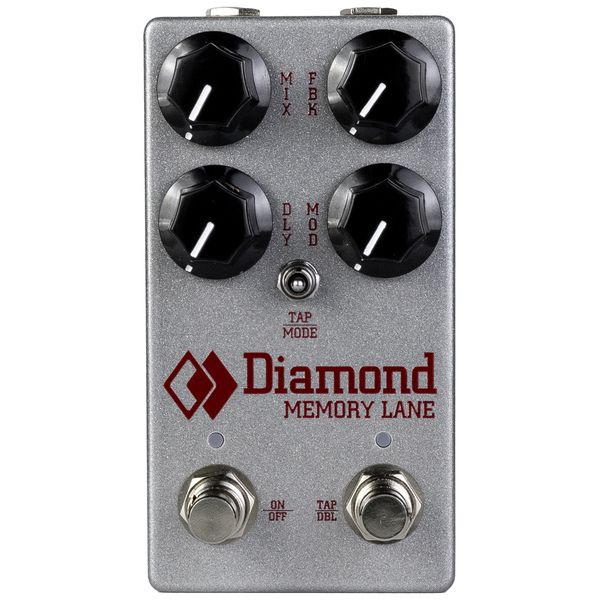

Controls: FBK (feedback), MIX, DLY (delay time), MOD (modulation)
Switch: Tap / Mode
Footswitch: Effect bypass / MOD, TAP / DBL
LED: On, Tap

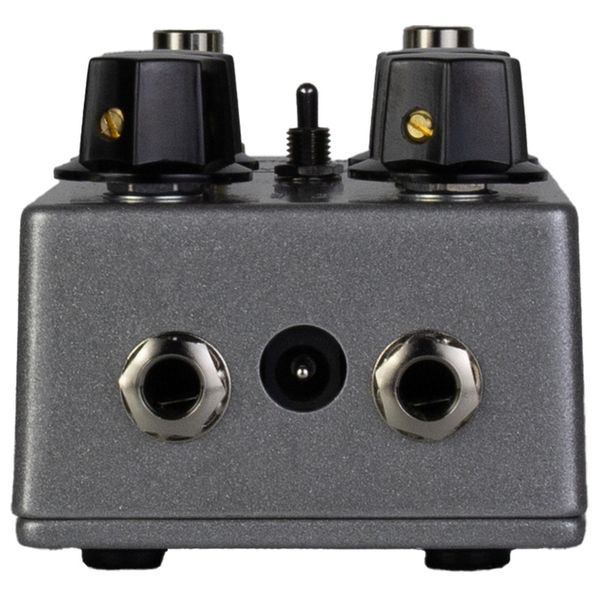

Input and output: 6.3 mm jack
Power consumption: 50 mA
Power supply via 9 V DC mains adapter (2.1 x 5.5 mm barrel connector, centre negative) - suitable power supply: Art. no. 409939 (not included)
Dimensions (W x D x H): 67 x 122 x 40 mm
Weight: 310 g
Made in Canada

Note: Battery operation not supported.
