Showgear PowerCore 125.5c

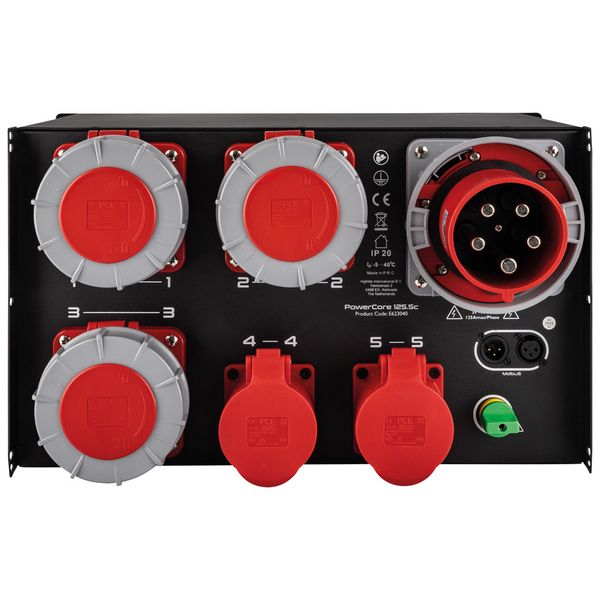

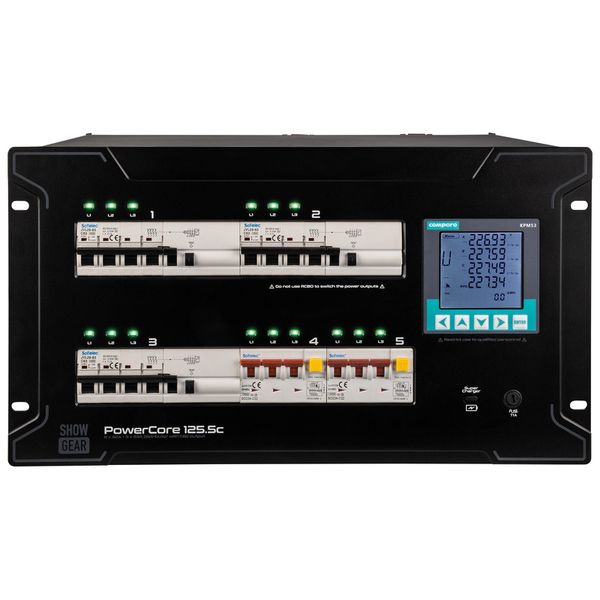

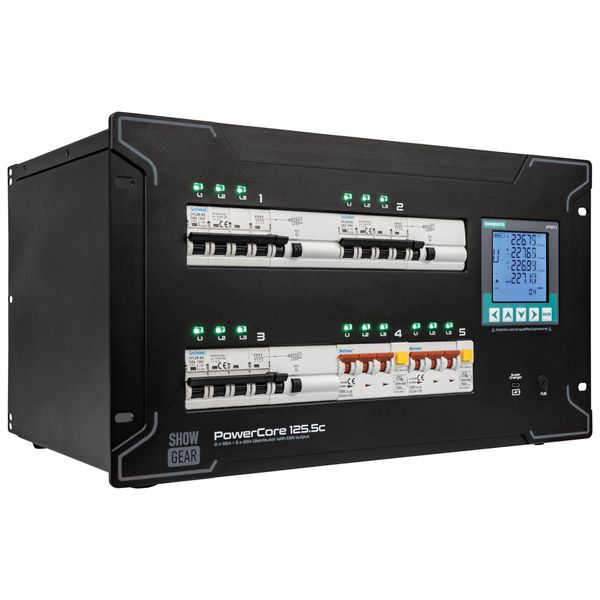

Showgear PowerCore 125.5c; 19" power distribution board; Individual residual current devices (RCDs) per output; Selective fault shutdown: If a fault is detected, only the affected circuit is switched off; LED status indicators per output; 3-inch LCD display for real-time monitoring of voltage values, power data, and phase information; Remote monitoring via integrated power meter with MdbuS communication protocol; CNC-machined aluminum front panel and PCE connectors; Electrical data: Rated current (A): 125 A; Power input: CEE5P 125 A; Power output connection: 2x CEE5P 32 A, 3x CEE5P 63 A; MCB current: 63 A; MCB class: Class C; MCB poles: 4; RCCB class: A; RCCB sensitivity: 30 mA; RCCB poles: 4; Mechanical data: Housing material: aluminum, metal; Protection class: IP20; Rack units: 6 U; Dimensions (W x H x D): approx. 483 (19") x 271 (6 U) x 421 mm; Weight: 21.8 kg

30 días Money Back

3 años de garantía

número de artículo 626219
Precio por 1 Unidad(es)
