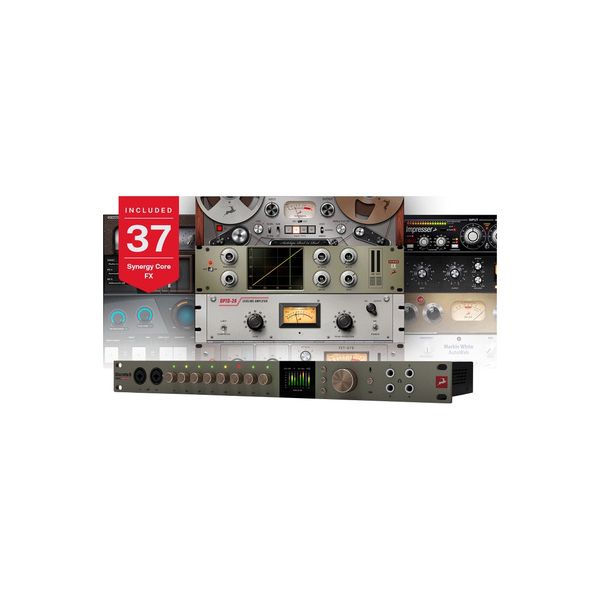

Antelope Discrete 8 Oryx Synerg B-Stock

USB Audio interface

• 26x38 USB-C audio interface with real-time effects processing
• Synergy Core onboard platform with 2x DSP and 1x FPGA chip
• AD/DA conversion: up to 24 bit / 192 kHz
• Up to 130 dB dynamic range
• 8 discrete 6-transistor preamplifiers with up to 75 dB gain
• 48 V phantom power
• 37 analogue-modelled SC effects including compressors, EQs, guitar amps, mic preamps and more
• 64-bit Acoustically Focused Clocking (AFC) technology
• Latency (< 1 ms) for real-time monitoring with SC effects
• X-Feed crossfeed function for headphone outputs
• Digitally expandable via ADAT (16 channels) and via S/PDIF (2 channels)
• Format: 19" / 1 U
• Dimensions (W × H × D): 483 × 44 × 220 mm
• Weight: 3.1 kg
• Includes Quickstart Guide, USB-C cable, USB-C to USB-A adapter and power supply

Connections:

• 6x combo input Mic/Line (XLR/jack)
• 2x combo inputs Mic/Line/Hi-Z (XLR/jack)
• 1x line output (8 channels) via D-Sub 25
• 1x monitor output L/R (6.3 mm jack)
• 2x Reamp output (6.3 mm jack)
• 4x stereo headphone output (6.3 mm jack)
• 2x ADAT I/O (up to 16 channels)
• 1x S/PDIF I/O
• 1x BNC Wordclock input
• 3x BNC Wordclock output
• 1x footswitch input
• 1x USB 2.0 Type-C port
