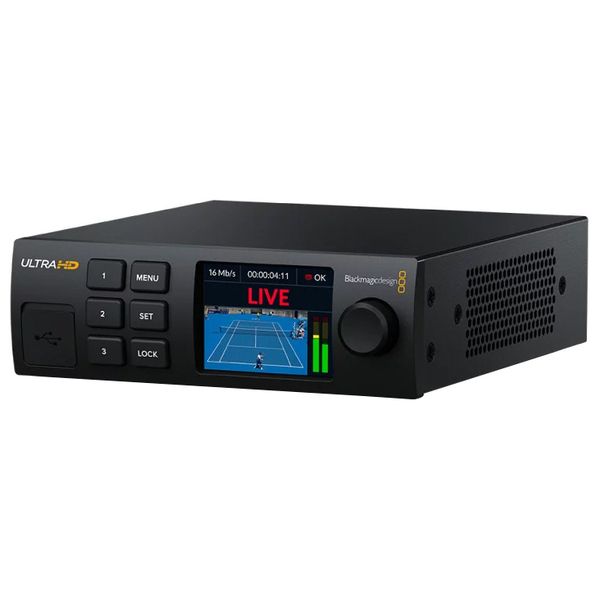

Blackmagic Design Streaming Decoder 4K

Streaming Decoder

• Enables the reception of an H.265 stream from a Blackmagic Streaming Encoder, ATEM mixer, or Blackmagic camera and converts it back to SDI and HDMI video
• Supports Blackmagic Cloud Streaming
• With a 12G-SDI reference input to which an SDI tally, camera control or talkback device can be connected and the signals sent back to the encoder
• Power supply via integrated AC power supply for 100–240 V (IEC power cable not included) / 4-pin XLR 12 V DC socket for external power supply or battery operation
• Dimensions: 140 x 44 x 175.5 mm
• Weight: 760 g

Connections:

• SDI reference input: 1
• SDI video outputs: 1
• SDI reference output: 1
• SDI rates: 1.5 G, 3 G, 6 G, 12 G
• HDMI 2.0 video outputs: 1
• Audio input/output for live streaming
• 2 channels of embedded livestream audio at the output, 2 channels of embedded programme audio at the input, 2 channels of embedded talkback audio at the input
• SDI audio inputs: 16 channels of embedded audio on the 12G-SDI reference input
• SDI audio outputs: 16 channels of embedded audio on the 12G-SDI reference output, 2 channels of embedded audio on the 12G-SDI output
• HDMI audio outputs: 8 channels of embedded audio on the monitoring output
• Webcam output: 1 USB-C port up to 2160p/60
• Ethernet: supports 10/100/1000BaseT for live streaming, configuration and software updates
