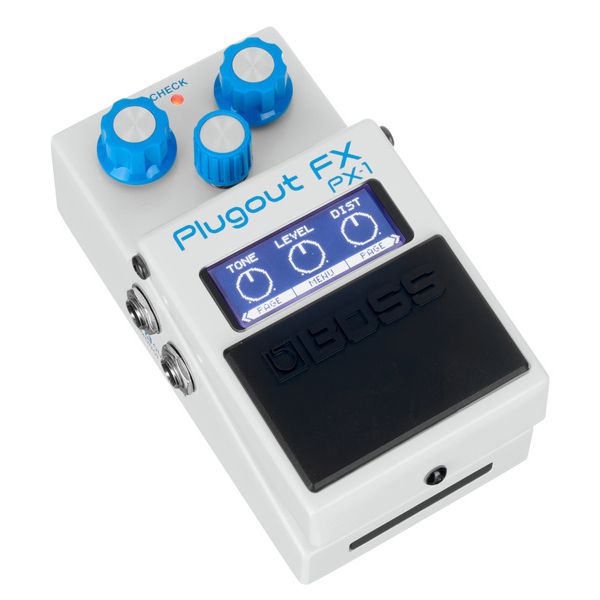

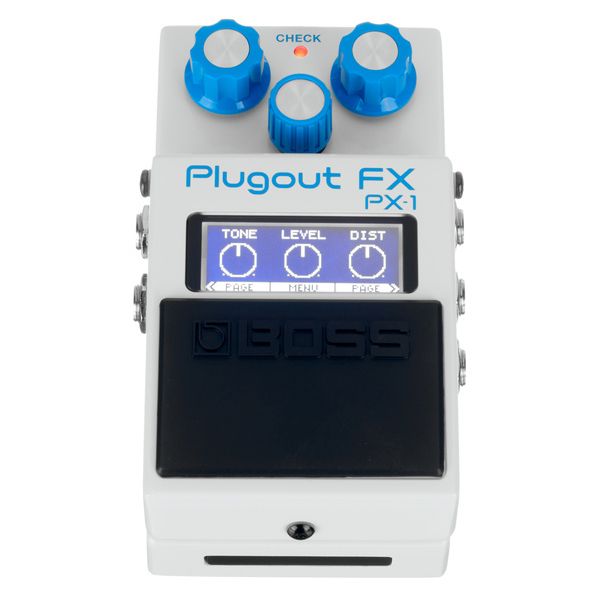

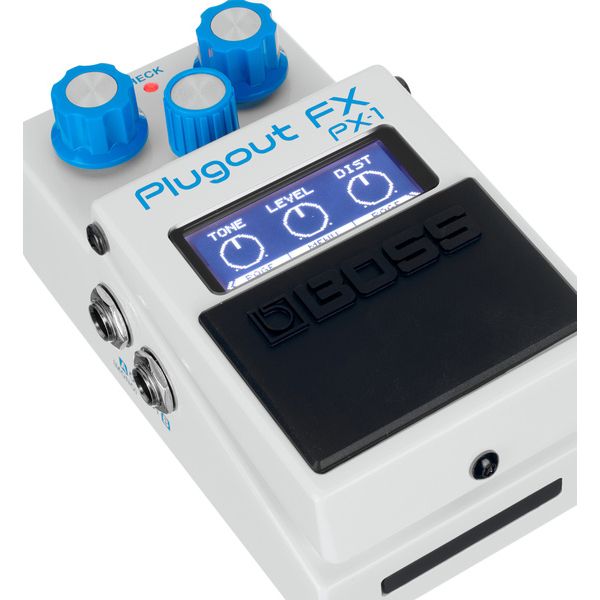

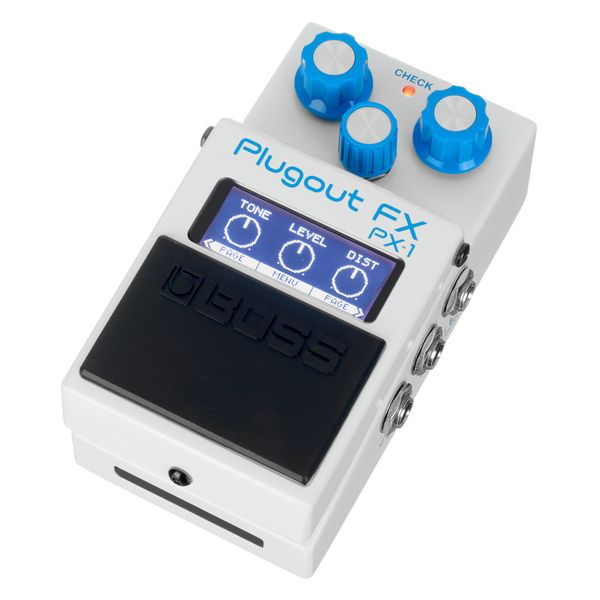

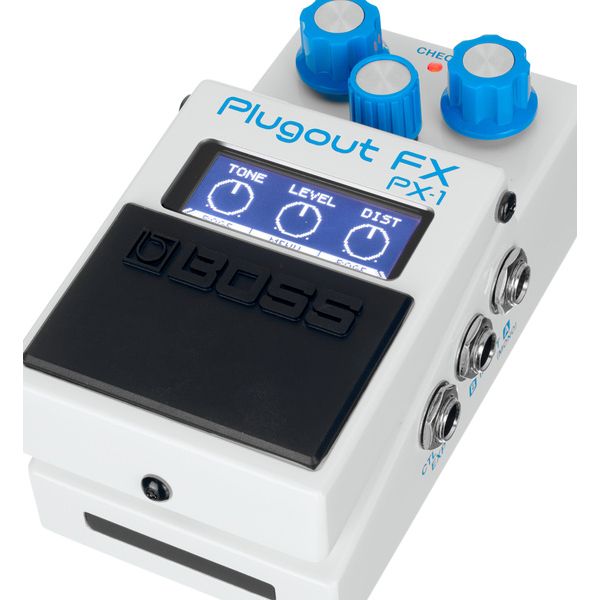

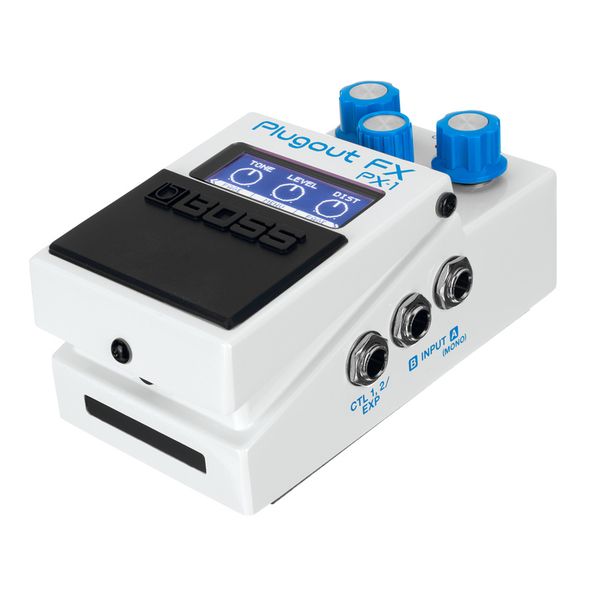

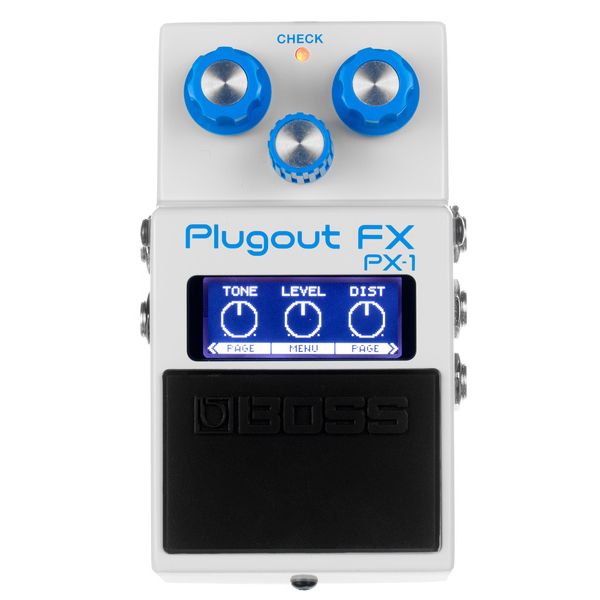

Boss PX-1 Plugout FX

Effect Pedal for Electric Guitar

Pedal modeler in a compact format
Modelled on timeless effects from the history of BOSS
Eight pre-installed BOSS classics: OD-1, PH-1, SP-1, DS-1, CS-1, TW-1, SG-1 and SD-1
Eight additional effects can be installed free of charge via the BOSS Effect Loader app (CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2 and DF-2)
Regular paid releases are planned, so that the eight additional pedal slots can be replaced by further algorithms.
MIDI IN socket for MIDI clock tempo synchronisation with time-based effects such as delay
Controls: Left Knob, Center Knob, Right Knob
LED: Effect On
Display: LCD 128 x 48 dots
Footswitch: Pedal switch

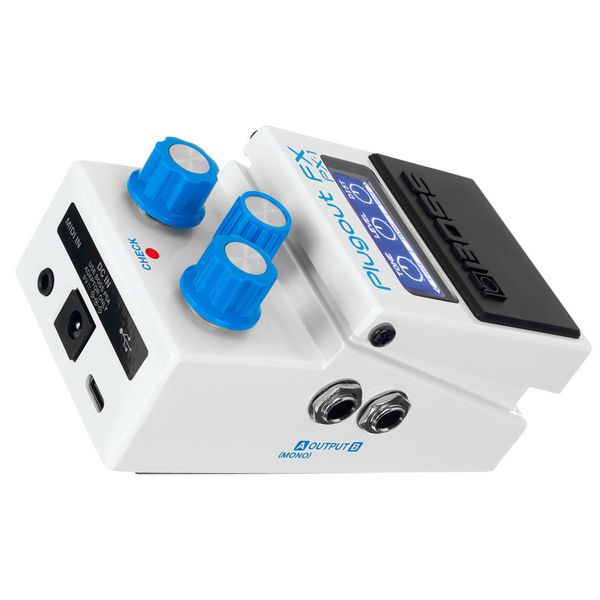

Input A+B: 2 x 6.3 mm jack

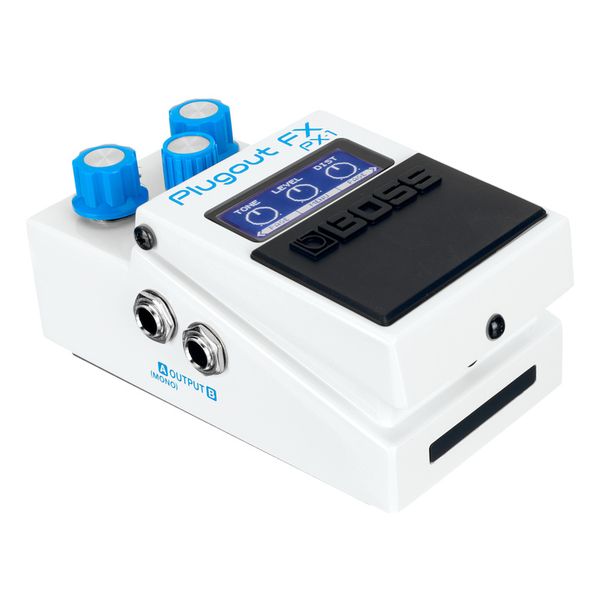

Output A+B: 2x 6,3 mm Klinke
CTL 1, 2/EXP Connection: 6.3 mm stereo jack
USB-C
MIDI input: 3.5 mm stereo jack
Power supply connection: Barrel connector 5.5 x 2.1 mm centre negative
Current consumption: 260 mA (AC Adaptor), 420 mA (USB)
Power supply with a 9 V DC mains adapter
Dimensions (W x D x H): 73 x 125 x 56 mm
Weight: 400 g
Includes power supply

Note: Battery operation is not supported.
