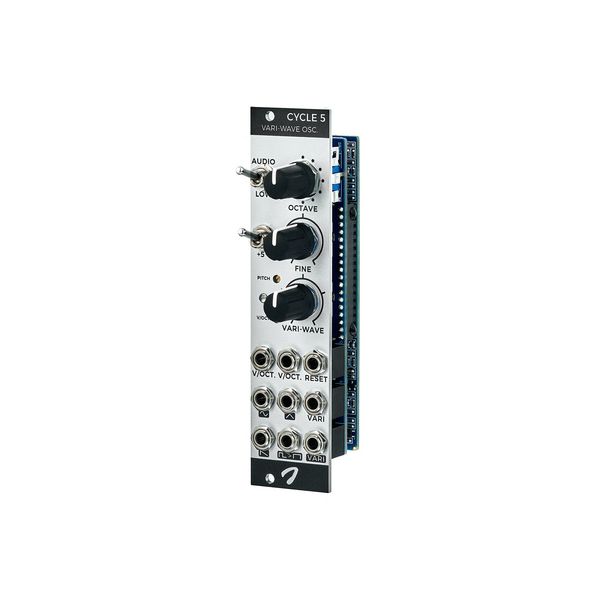

Joranalogue Audio Design Cycle 5 B-Stock

Producto B-Stock con garantía completa
Devoluciones o eventualmente con leves signos de uso

Eurorack Module

Analogue Vari-Wave oscillator
7-Stage octave selector switch
Control for fine tuning and switch for transposing by a fifth
Vari-Wave controller with CV input for stepless fading from sine to triangle and sawtooth to square wave with pulse width modulation
Switchable LFO mode
Two exponential pitch and FM inputs (1 V / oct.) and reset input
Waveform outputs for sine, triangle, sawtooth, square/pulse and Vari-Wave
Power requirements: 75mA (+12V) / 70mA (-12V)
Width: 6 HP
Depth: 30 mm
