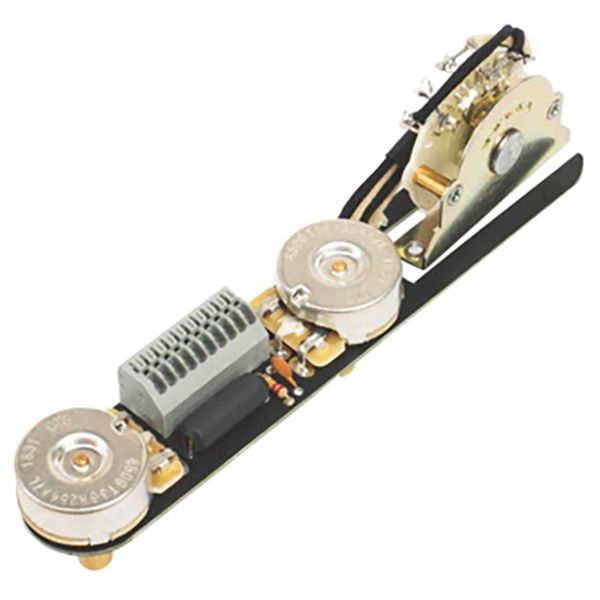

ObsidianWire T Cust. 4-Way Control Plate C

()

Solderless Electronics Replacement Kit for Electric Guitars

For T-Style models
Material: Brass
Fully equipped with ObsidianWire Vintage T-Style 4-way electronics including potentiometer knobs and a Pro-Wired jack
Easy, solder-free installation
Custom 4-way control layout offers a series "humbucker" mode
A treble bleed prevents treble loss at low volume control settings
Highest quality components for a significant improvement over standard electronics
Controls: Volume, Tone
Switch positions: 1: Neck and bridge in series (humbucking), 2: Neck, 3: Neck and bridge in parallel (traditional T-style), 4: Bridge
Finish: Chrome
Made in New Zealand

Delivery contents:

Volume control: One CTS 250 kOhm, logarithmic
Tone control: One CTS 250 kOhm, logarithmic
Thread length: 9.5 mm
Shaft: Solid shaft
Capacitors: 1 x 150 Series Polyester 0.022µF
Switch: Oak Grigsby 4-way switch
Jack socket: 6.3 mm mono

30 días Money Back

Disponible desde Noviembre 2025
número de artículo 628335
Precio por 1 Unidad(es)
Construcción Prewired Harness/Wiring Kit
Valor de resistencia 250 kOhm
Curva característica Logarítmico
Potenciómetro en tándem No
Push/Push No
Sin soldadura No
Tipo de eje Liso
Color Plateado
Tipo Control Plate

145 €

Todos los precios incluyen IVA

Rango de ventas

en Potenciómetros

1 Valoraciones de los clientes

5 1 Cliente 4 0 Clientes 3 0 Clientes 2 0 Clientes 1 0 Clientes

5 / 5

Fabricación

Pautas legales sobre valoraciones

1 Reseña

Mostrar traducción

Mostrar original

Lamentablemente hubo un error. Por favor, inténtelo de nuevo más tarde.

Doesn't fit a Mexican Fender Player Telecaster

Eren Yeager 27.06.2026

You have to check if it fits yours, since it only fits standard Telecasters. On my case it didn't, and basically what I had to do was, grid the wooden plate cavity of the guitar's body a little bit (so the knobs fit), and also, drill a new screw hole.

I will probably create a reddit post regarding this. You have to start by positioning the side of the plate closer to the neck. That will be your baseline to make it fit.

The hole that has to be redone is the one closer to the bridge, not to the neck.

Other than that, I am extremely happy with the quality. The base player telecaster control plate is really bad quality, you will see it when you pull it out :D
