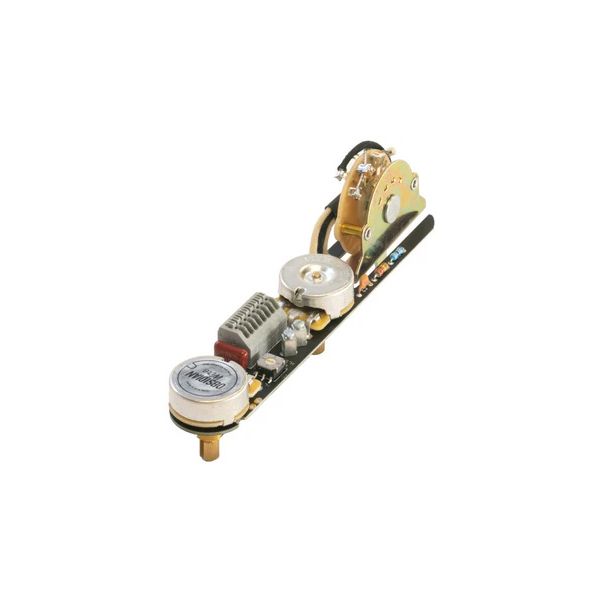

ObsidianWire T Univ. 3-Way Control Plate C

Solderless Electronics Replacement Kit for Electric Guitars

For T-Style models
Fully equipped with ObsidianWire Custom T-Style 4-way electronics including potentiometer knobs and a Pro-Wired jack
Easy, solder-free installation
Four optimised modes: HH, HS, SH & SS
Intelligent circuitry (500 kOhm for humbuckers & 250 kOhm for single coils)
Treble bleed prevents treble loss at low volume control settings
With highest quality components for a significant improvement over standard electronics
Controls: Volume and Tone
Switch positions: 1: Bridge, 2: Bridge & neck, 3: Neck
Finish: Chrome
Made in New Zealand

Delivery contents:

Volume control: 1 x CTS 500/250 kOhm, logarithmic, finely grooved slotted axle (24 teeth for US guitars & potentiometer knobs)
Tone control: 1x CTS 250 kOhm, logarithmic, finely grooved slotted shaft (24 teeth for US guitars & knobs)
Capacitors: One 150 Series Polyester 0.022µF
Oak Grigsby 3-way switch
Jack socket: 6.3 mm mono

Disponible desde Noviembre 2025
número de artículo 628336
Precio por 1 Unidad(es)
Construcción Prewired Harness/Wiring Kit
Valor de resistencia 250 kOhm
Curva característica Logarítmico
Potenciómetro en tándem No
Push/Push No
Sin soldadura No
Tipo de eje Estriado
Color Plateado
Tipo Control Plate

145 €

Todos los precios incluyen IVA

138

Rango de ventas

en Potenciómetros

2 Valoraciones de los clientes

5 1 Cliente 4 1 Cliente 3 0 Clientes 2 0 Clientes 1 0 Clientes

4.5 / 5

Fabricación

Pautas legales sobre valoraciones

1 Reseña

Mostrar traducción

Mostrar original

Lamentablemente hubo un error. Por favor, inténtelo de nuevo más tarde.

Solid, Simple and Sexy

SomeAreDead 18.01.2026

Never rewired a guitar before, don’t own a soldering iron so buying the ObsidianWire was a bit of a forgone conclusion. Upgrading a mid level Harley Benton tele, the plate was a little wider and longer. The original HB plate had a screw half in the cavity so I filled the mess to give the new one more stability. I had to save off some pick guard to squeeze the plate into place. I was putting in BareKnuckle Brute Force pickups (much hotter than HB ones) which is why I went universal so I could try SS or HS settings. Instructions aren’t very detailed but YouTube came to the rescue. Fitting wires etc was a doddle and the jack is much better than the HB supplied one. In the end I had a much louder and grungier sounding Tele. Think I’ll leave it on the HS setting as it takes it down a little.
