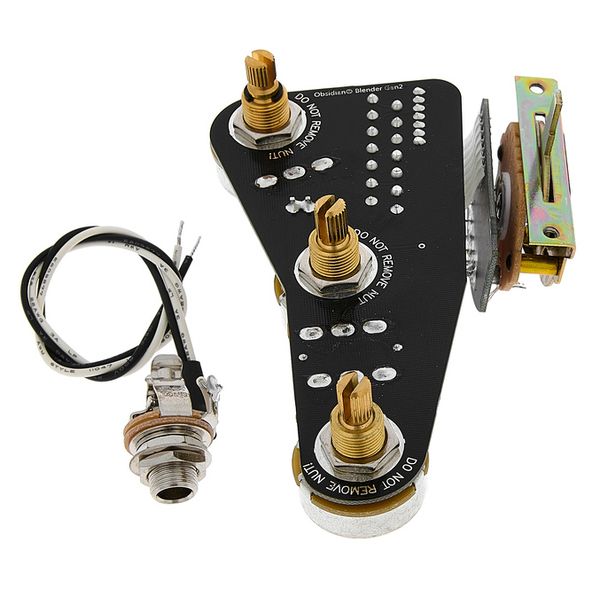

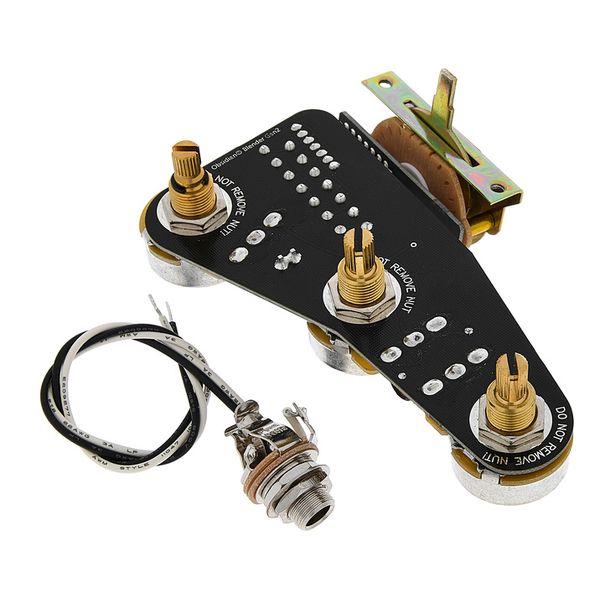

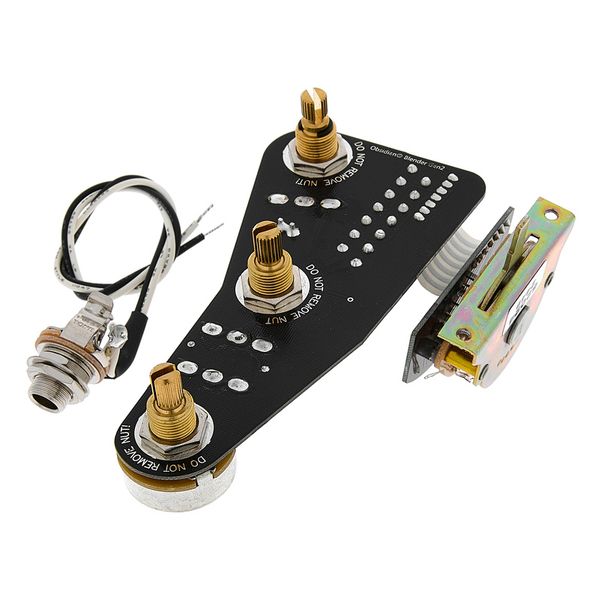

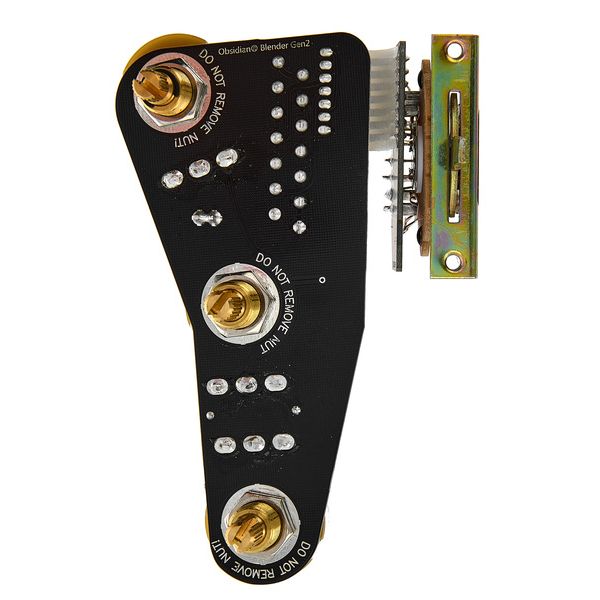

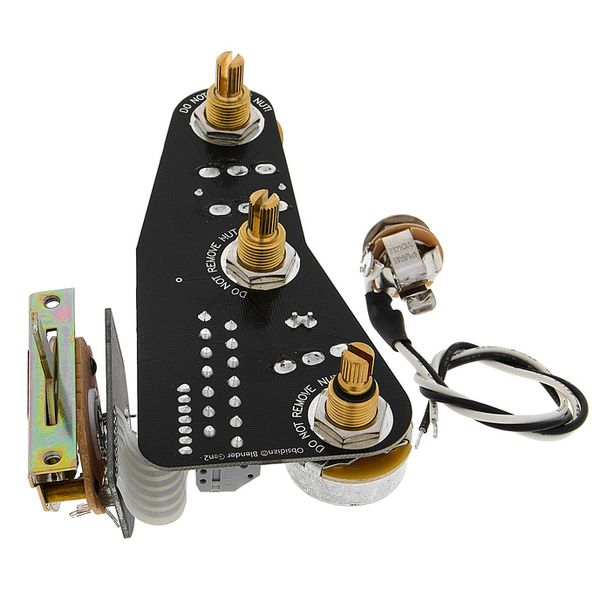

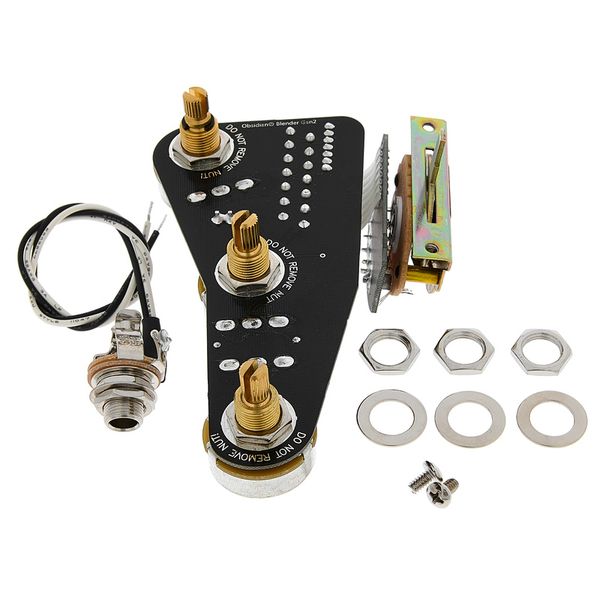

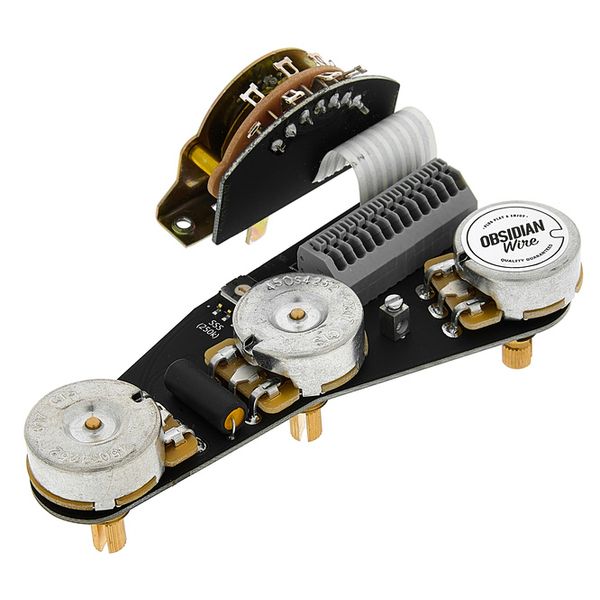

ObsidianWire ST Universal Blender Harness

Solderless Electronics Replacement Set for Electric Guitar

• For ST-style models
• The popular Blender harness, finally compatible with humbuckers
• With the highest quality components for a significant improvement over standard electronics
• Controls: Master volume, master tone, blender
• Switch positions: 1: Bridge (neck pickup blendable), 2: Bridge & middle (neck pickup blendable), 3: Middle, 4: Middle & neck (bridge pickup blendable), 5: Neck (bridge pickup blendable)
• Volume control: 1 x CTS, logarithmic
• Tone control: 1 x CTS, logarithmic
• Blend control: 1 x CTS, logarithmic
• Thread length: 9.5 mm
• Shaft: Finely fluted slotted shaft (24 teeth for US guitars and potentiometer knobs)
• Capacitors: 1 x 150 Series polyester 0.022µF
• Switch: CRL 5-way Lever
• Jack socket: Switchcraft 1/4" mono
• Made in New Zealand

Four modes:

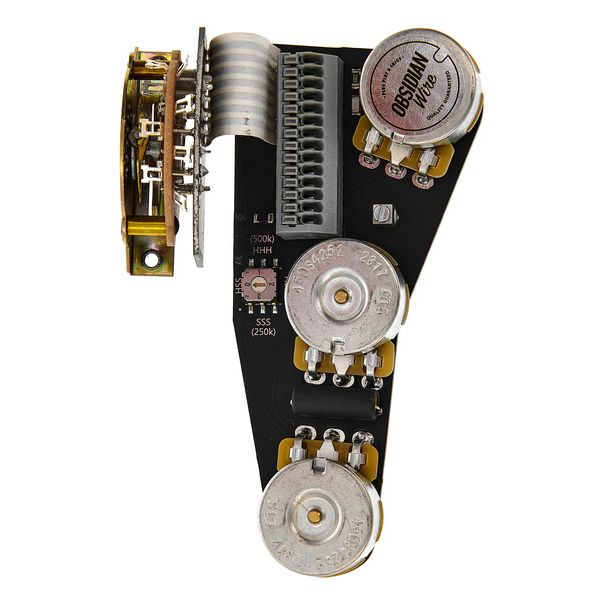

• Mode 1: SSS / 250k, for 3 single coils or most single coil format humbuckers
• Mode 2: HSS / Intelligent Switching - automatically switches between 250k and 500k
• Mode 3: HHH / 500k, for any pickup that needs more treble and output
• Mode 0: HSH / Intelligent Switching (automatically switches between 250k and 500k), replaces the rear tone pot with a blender control that can be used to fade in either the neck or bridge pickup in certain combinations of the 5-way switch
